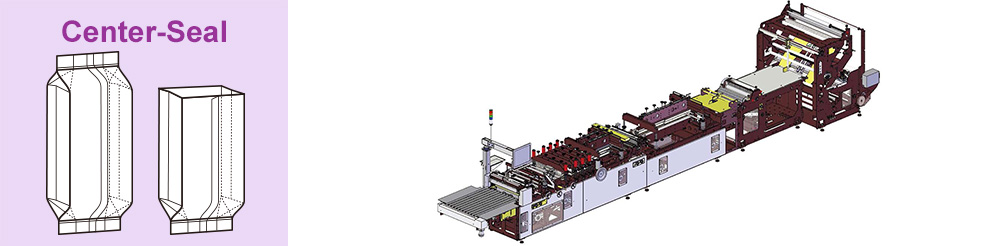

FD-60DHigh-speed, center press-seal, automatic pouch making machine

FD-60D

Number 1 machine for center press-seal pouches

3servo system

Maximum pouch making shot: 240 CPM

  • *Pouch making capacity depends on film material and thickness.

Number 1 machine for center press-seal pouches

  • 840 mm long back-seal heat sealer enables long film feed at high speed.
  • Individual heating management in two places on the longitude heat sealer ensures beautiful appearance and quality seal strength.

Product Features

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Pouch Making Sizes and Shapes

  • FD-60D

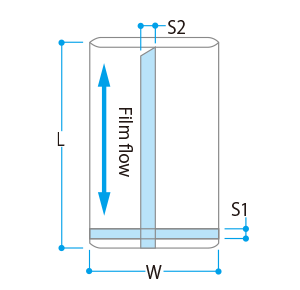

    Flat pouches

    W (Pouch width) :200 mm to 590 mm
    L (Pouch length) :500 mm max.
    S1 (Bottom seal width) :5 mm to 50 mm
    S2 (Center seal width) :8 mm to 15 mm
  • FD-60D

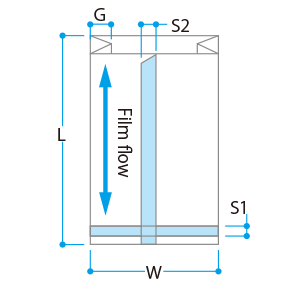

    Gusset pouches

    W (Pouch width) :200 mm to 590 mm-2G
    L (Pouch length) :500 mm max.
    G (Gusset fold width) :30 mm to 140 mm
    S1 (Bottom seal width) :5 mm to 50 mm
    S2 (Center seal width) :8 mm to 15 mm

*Bag sizes referenced above utilize optional devices.
