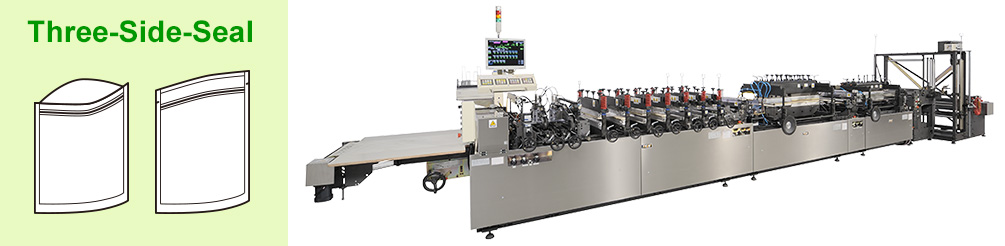

BH-60DLLCHigh-speed, three-side-seal, automatic pouch making machine [ with zipper sealing unit ]

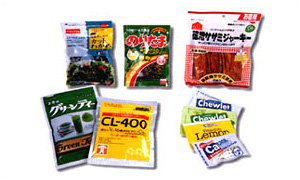

Sample Products


Pouches for seaweed products, candies, etc.


  • Inverter Controlled Edge Trim Winder
  • Cutter Control System
  • Rice Bag Roller
  • Remote Management and Maintenance System

Product Features

he addition of a zipper point seal heat-sealer extends the length of the cross heat-sealer frame of the BH-60HVLLC by 400 mm more than the standard BH-60D model *1.

A 4-servo model *2 can also be supplied with an extra servo for the feed drive system.

Totani's exclusive "Water-cooled sealing plate" is used in the zipper seal unit to give a beautiful finish to the bags. This "water-cooled sealing plate" ensures stable zipper bag making at 240 CPM.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others. Please consult with sales dept. for further information.

Standard Specifications

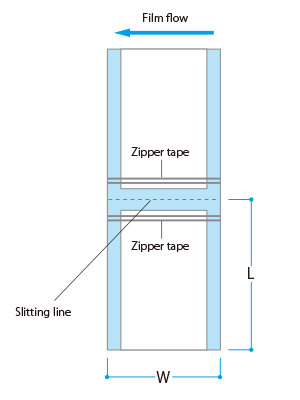

Bag Making Sizes & Shapes


Zipper bags 2-line, three-side-seal bag making (1-line bag making is also possible)

  • W (Bag width) : 60 mm to 300 mm
  • L (Bag length) : 120 to 300 (2-line bag making) / 240 to 550 (1-line bag making)

* Maximum bag length is controlled by equipment fitted to cross heat-sealer unit and effective length of cross heat-sealer unit. Therefore, the maximum bag widths shown above are not the bag making capacity with full equipment.

** See "BH-60D"-Bag Making Sizes & Shapes- for three-side-seal bag making.

Standard Specifications

Film Laminated film of all kinds
Roll size Maximum width : 1200 mm,
Maximum diameter : 800 mm
* Same as roll film dimensions for three-side-seal bag making.
Roll film unwinding unit Horizontal shaft, V plate system,
Definitive tension control system, powder brake equipment
Control system Numerical control system
Film feed mechanism Dual AC servo motor drive system (Optional extra servo available) *1
Heat-sealer vertical
movement mechanism
Single AC servo motor drive system (With functions for setting sealing time)
Bag making data
storage function
Sealing temperature, Bag making speed, Sealing time, Sealing ratio, Film acceleration, other
Bag making capacity <For three-side-seal with zipper bag making>
Maximum number of shots : 240 CPM,
Maximum film speed : 30 m/min
<For three-side-seal bag making only>
Maximum number of shots : 240 CPM,
Maximum film speed : 45 m/min for film roll diameters 800 mm to 600 mm, 60 m/min for smaller diameters *2
(*Slow start mechanism is used in some cases)
Area for installation, Weight About 1.88 x 10.04 m m *3 / About 6,100 kg
Optional equipment # See "BH-60D"-Standerd specifications-
* Slow start mechanism is to adjust to the set operation speed from the machine start gradually in a few seconds.
*1 Equipment settings by display and simple keyboard entry.
Printing mark detection by mark sensor.
*2 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*3 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
