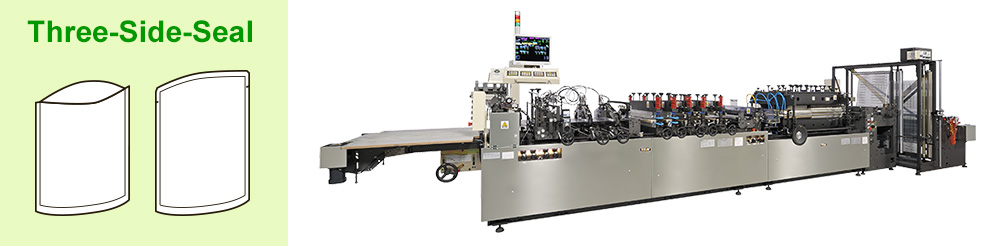

BH-60DHigh-speed, three-side-seal, automatic pouch making machine


Sample Products


Pouches for various retort foods, etc.


  • Inverter Controlled Edge Trim Winder
  • Cutter Control System
  • Rice Bag Roller
  • Remote Management and Maintenance System
  • Tear Notch / Hangar Hole Punch
  • Deep Offset Punch

Product Features

The attraction of Totani's 3-servo system lies in separate control of film feed and vertical heat-sealer drives. Using the "Sealing Time setting function" and "Sealing Waiting Time function", allows for a quicker setup at low speed and a ramp to high speed, without changing acceleration, to give high-speed bag making at up to 240 CPM*.
* With additional option, the machine can run up to 300 cpm.

In addition, the roll film shaft is an air shaft, which makes film roll changes very easy.

"Remote Management and Maintenance System (Optional)" and "Cutter Control System(Optional) (for making corner cuts, etc.)" make this the champion of forward-looking three-side-seal pouch making machines.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Standard Specifications

Bag Making Sizes & Shapes


Bottom Seal (4-line bottom seal illustrated)

  • L1 (Bag length) : 2-strike 300 mm max, 1-strike 500 mm max
  • W1 (Bag width) : 75 mm to 600 mm
  • S1 (Seal width) : 80 mm max
  • S2 (Seal width) : 25 mm max

* Longitudinal heat-sealer length controls maximum feed length. Longitudinal seal is 1-strike if feed length is 300 mm or more. An optional double feed unit should be used if 2-strike is required.

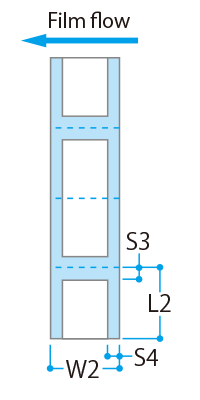

Side Seal (4-row side seal case illustrated)

  • L2 (Bag length) : 50 mm to 600 mm
  • W2 (Bag width) : 2-strike 300 mm max, 1-strike 500 mm max
  • S3 (Seal width) : 25 mm max
  • S4 (Seal width) : 40 mm max

* Maximum bag length is controlled by equipment fitted to cross heat-sealer unit and effective length of cross heat-sealer unit. Therefore, the maximum bag widths shown above are not the bag making capacity with full equipment.

Standard Specifications

Film Laminated film of all kinds
Roll size Maximum width: 1200 mm,
Maximum diameter: 800 mm
Roll film unwinding unit Horizontal shaft, V plate system,
Definitive tension control system, powder brake equipment
Control system Numerical control system
Film feed mechanism Dual AC servo motor drive system
(Optional extra servo available)*1
Heat-sealer vertical movement mechanism Single AC servo motor drive system
(With functions for setting sealing time)
Sealing width Cross seal width: 80 mm max.,
Longitudinal sealing width: 50 mm max.
* Wide heat-sealer (optional) required for sealing widths exceeded 50 mm (up to 80 mm max.)
Bag making data storage function Sealing temperature, Bag making speed,
Sealing time, Sealing ratio, Film acceleration, other
Bag making capacity Maximum number of shots : 240 CPM. 300 CPM with optional kit
Maximum film speed :
45 m/min for film roll diameters 800 mm to 600 mm,
60 m/min for smaller diameters *2
(*Slow start mechanism is used in some cases)
Area for installation, Weight About 1.82 x 7.83 m *3 / About 4,900 kg
Optional equipment
  • Standing pauch unit
  • Zipper seal unit
  • Inverter Controlled Edge Trim Winder
  • Delivery Conveyor
  • Additional film roll (2-stage) racking unit
  • Large film roll racking unit
  • Additional racking unit for joining film rolls
  • Swing arm film roll racking unit
  • Shaftless swing arm film roll racking unit
  • Film roll rack lifter
  • Powder Shaker
  • Double feed unit
  • Punch trash collector
  • Punch Equipment (various)
  • Corner cutting unit
  • Additional notch base
  • Stitch unit
  • Alarm Equipment (various)
  • Cutter Control System
  • Remote Management and Maintenance System
* Slow start mechanism is to adjust to the set operation speed from the machine start gradually in a few seconds.
*1 Equipment settings by display and simple keyboard entry. Printing mark detection by mark sensor.
*2 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*3 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
