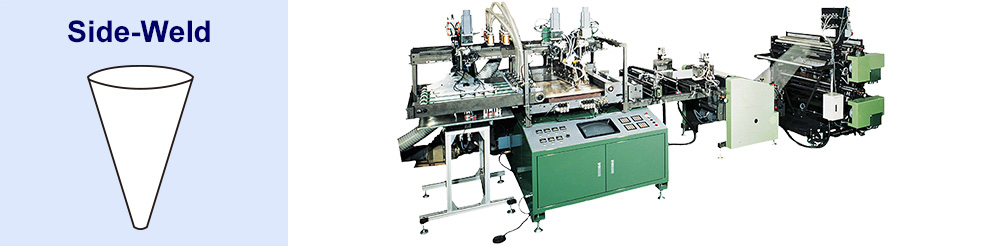

VK-65High-speed, oblique side-weld, automatic bag making machine
with automatic carry and stack function for triangular bags

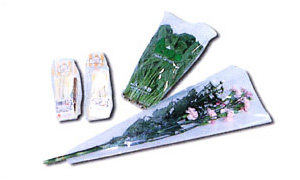

Sample Products


Bags for spinach, flowers, sandwich, etc.


  • Coreless Trim Winder

Product Features

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Standard Specifications

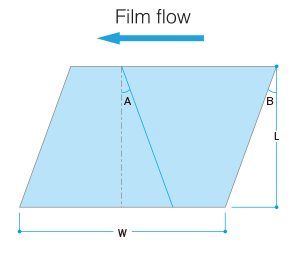

Bag Making Sizes & Shapes


  • W (Bag width) : up to 700 mm (two bags)
  • L (Bag length) : up to 650 mm
  • A (Thermal cutter angle) : up to 20 degrees
  • B (Thermal cutter angle) : up to 20 degrees

*Also suitable for rectangular bags.

Standard Specifications

Film OPP, Film thickness: 20 to 100 micron *1
Roll size Maximum width : 650 mm, Maximum diameter : 500 mm
Roll film unwinding unit Horizontal dual shaft roll film shaft type, Definitive tension control system, powder brake equipment
Control system Numerical control system
Film feed mechanism Single AC servo motor drive system (Optional extra servo available) *2
Heat-sealer vertical
movement mechanism
Dual AC servo motor drive system
Drop blade
(bag stacking) mechanism
Single AC servo motor drive system
Bag making capacity Maximum number of shots : 100 CPM (200 bags/min)
* Several empty shots will occur while bags are removed.
Maximum film speed : 45 m/min *3
Area for installation, Weight About 1.49 x 6.35 m *4 / About 4,550 kg
Optional equipment
  • Coreless Trim Winder
  • Pin guide conveyor
  • HK-120 type delivery conveyor
  • Punch Equipment (various)
  • Roll film section stitching equipment (various)
  • Separate block seal unit
*1 Film making capacity depends on thickness and type of film.
*2 Equipment settings by display and simple keyboard entry.
Printing mark detection by mark sensor.
*3 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*4 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
