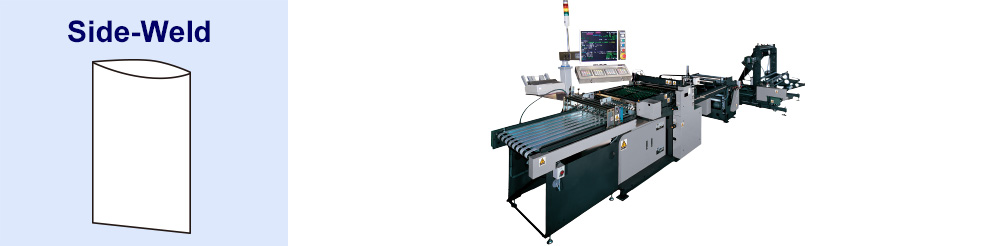

HK-90VHigh-speed, side-weld, automatic bag making machine

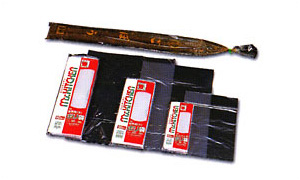

Sample Products


Bags for necktie and umbrella, etc.


  • Coreless Trim Winder

Product Features

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Standard Specifications

Bag Making Sizes & Shapes

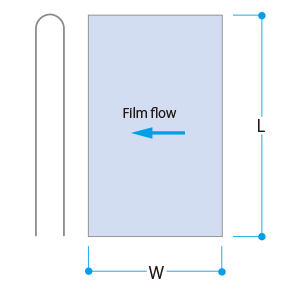

Half fold fusion bag making

  • W(Bag width) :  80 to 500mm
  • L(Bag length) : 300 to 900mm

Standard Specifications

Film OPP, CPP, HDPE, LDPE, LLDPE, and other plastic film capable of being fusion sealed. Film thickness: 20 to 100 micron *1
Roll size Maximum width : 1800 mm, Maximum diameter : 600 mm
Roll film unwinding unit Horizontal shaft, V-folder (Triangular plate) system, Definitive tension control system, powder brake device
Control system Numerical control system
Film feed mechanism Single AC servo motor drive system *2
Hot knife vertical mechanism Single AC servo motor drive system (With functions for setting sealing time)
Catching mechanism Single AC servo motor drive system
Bag making data
storage function
Sealing temperature, Bag making speed, Sealing time, Sealing ratio, Film acceleration, other
Bag making capacity Maximum number of shots
(HDPE#15) : 250 CPM, (CCP#40) : 250 CPM,
Maximum film speed : 60 m/min
(In case that HK-90V V-folder/unwinder is used) *3
Area for installation About 2.48 x 6.79 m *4
Optional device
  • Sealing slitter (one up or two up)
  • Coreless Trim Winder
  • Large punch device
  • Airplane punch device
  • N200 punch device
  • N325 punch device
  • Thomson die cut punch device
  • OP gusset pinhole holder
  • 2-stage web racking unit
  • Double V-folder
*1 Film making capacity depends on thickness and type of film.
*2 Device settings by display and simple keyboard entry.
Printing mark detection by mark sensor.
*3 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*4 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
