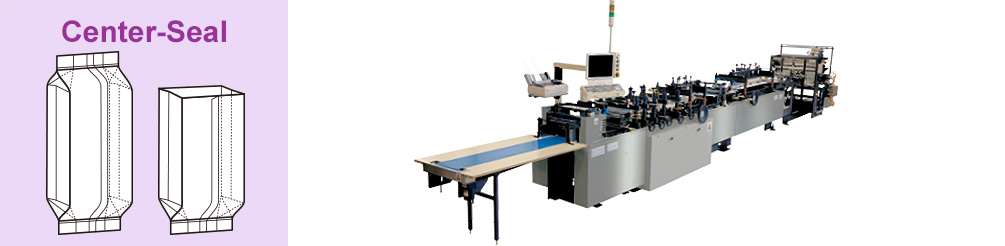

FD-35VHigh-speed, center press-seal, automatic pouch making machine

FD-35V

Dual-servo for film feed drive and one-servo
for heat-sealer vertical drive

3servo system

Maximum pouch making shot: 240 CPM

  • *Pouch making capacity depends on film material and thickness.

Number 1 machine for center press-seal pouches

  • 840 mm long back-seal heat sealer enables long film feed at high speed.
  • Individual heating management in two places on the longitude heat sealer ensures beautiful appearance and quality seal strength.

Product Features

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Pouch Making Sizes and Shapes

  • FD-35V

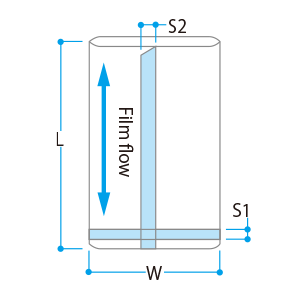

    Flat pouches

    W (Bag width) :35 mm to 350 mm
    L (Bag length) :60 mm to 500 mm
    S1 (Bottom seal width) :5 mm to 50 mm
    S2 (Center seal width) :8 mm to 15 mm
  • FD-35V

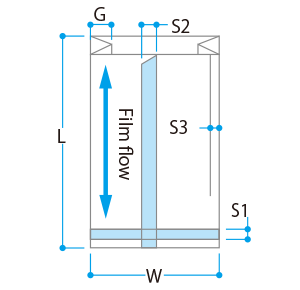

    Gusset pouches

    W (Bag width) :55 mm to 350 mm
    L (Bag length) :60 mm to 500 mm
    G (Gusset fold width) :10 mm to 80 mm
    S1 (Bottom seal width) :5 mm to 50 mm
    S2 (Center seal width) :8 mm to 15 mm
    S3 (Gusset seal width) :5 mm to 7 mm

*Bag sizes referenced above utilize optional devices.
