BH-80DG-FBOX POUCH® making machine


* BOX POUCH® is Totani's original trade name. (Trademark registered in America : Reg.No.3399863)
* BOX POUCH® is Totani's original trade name. (Trademark registered in UA : CTM Reg.No.4912549)

Sample Products

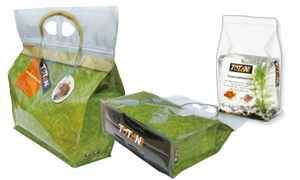

Box Pouches can used in a wide range of fields, such as packing of commodities and food such as candy, cereal box and infusion bags of drug medicine.


  • Inverter controlled no core edge trim winder

Product Features

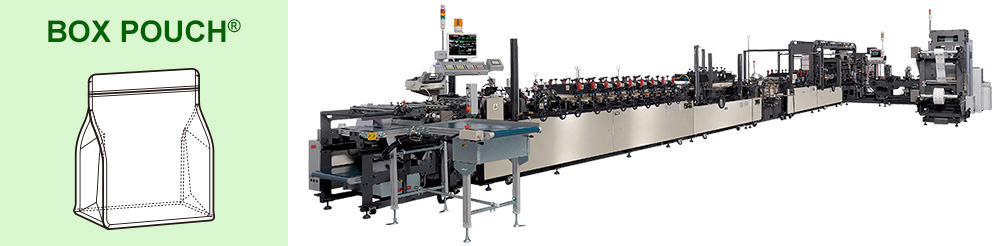

This model machine can make BOX POUCH®, which when filled, displays like a box to make it a more appealing package.

Totani's original technology realizes both high-speed (up to 100 shots per minute) Pouch making and high-quality/high-strength sealing, making it suitable for storage and transportation of not only solid but also liquid because of its high hermiticity.

Five-face printing is supported only in BOX POUCH®. And, most laminated films used in pouches for food and commodities are supported. This resource saving machine can save 12% film in comparison with conventional standing pouch with the same capacity.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.

Standard Specifications

Bag Making Sizes & Shapes


  • W1 (Bag width) : 134 - 444mm (5.28 - 17.5")
  • W2 (Inside dimention) : Minimum: 2mm (0.0787")
  • L (Bag length) : 300 [800-22-2G] mm
    11.8" [31.5-0.866-0.0787G]"
  • G (The depth of the gusset) : 37 - 97mm ( 1.46 - 3.82")
  • *Double Cut feature is 6 mm (0.236").

Side Gusset bag

  • W1 (Bag width) : 134 - 444mm (5.28 - 17.5")
  • W2 (Inside dimention) : Minimum: 2mm (0.0787")
  • L (Bag length) : 300 [800-14] mm
    11.8" [31.5-0.551]"
  • G (The depth of the gusset) : 37 - 97mm ( 1.46 - 3.82")
  • *Double Cut feature is 6 mm (0.236").

Standard Specifications

  Specification Detail Reference Notes
1: Speed of bag-making Maximum Speed: 100 shots (bags) per minute
  • Bag-making speed depends on film material and bag size.
2: Bag size Width: 134 - 444 mm (5.28 - 17.5in.) When the function of twice cutting is running, removed partial material is 6 mm (0.236"). Therefore, required length is 140~450 mm (5.51~17.7").
  • Top Fill Only on Box Pouch or Pinch Bottom Bag.
  • Corner Cutting Option available. Additional Feed Time not programmed in base.
[Side Gusset bag]
300 - 786 mm (11.9 - 30.9")
300 mm [778mm-2G] (11.9in [30.6 - 0.0787G])
G is the depth of the gusset.
  • Maximum distance is 350 mm (13.8") between the center of the machine and the zipper tape.
  • Maximum distance is 400 mm(15.7") between the center of the machine and the bottom seal.
  • Maximum distance is 370 mm (14.7") between the center of the mashine and the equipment of cutting corners.
Depth, Side Gusset: 37 - 97 mm( 1.46 - 3.82")
Min. distance between gusset: 2mm (0.0787")
Zipper Position > 8 mm (0.315") distance between zipper and the top of the side gusset.
Side Gusset Position > 100 mm (3.94") distance between top edge of bag and the top terminated side gusset.
Punch hole at the bottom (only Pinch Bottom Bag) : Diameter 6mm - 19mm (0.236in - 0.748in)
3: 45-Degree Angle Folded Gusset (Patent) Fold top edge of the gusset to 45-degree angle. > 8 mm (0.315") distance between under zipper and top of side gusset.
4: Seal side The standard width of the side seal is 8 mm (0.315"). The gusset folded to 45-degree angle must be heated bond on side seal. Therefore, if width ofside seal is narrow, it is possible that top of the gusset is not closed.
5: Double Cut material The standard width 6 mm (0.236"). It is possible that the width of the chip is getting narrow, but there is a possibility that the top of the gusset is not closed. Double cut chip is too narrow, top of gusset may not be sealed properly.
6: Pinch seal The pinch seal means a round seal, whichi is a part of the side seal.
The pinch seal prevents the side gusset from popping out of the bag.
The bag-maiking operation without the pinch seal can work.
The pinch seal is required if the width of the side seal is 5 mm (0.197").
7: Bottom punch The Gusset Bag without square bottom requires bottom holes. Bottom Punch Hole Diam:
9mm - 19 mm (0.354in - 0.748in)
Distance beween holes: 30 mm(1.18")
Two punch equipments is necessary to reduce the distance between two holes.
8. K-seal
(Ship bottom seal)
Side Gusset Bag -K-seal located at bottom head of gusset. The width of the seal bar is 130 mm (5.12") in the direction of film flowing. Seal bar is outfitted with the heater of the horizontal seal which is a part of the rocket seal.
Therefore, the heater block of 130 mm width is necessary to accept the seal bar.
9: Roll size

[Body material]
Max. Width: 800 mm (31.5")
Max Diameter: 1,600 mm (63.0")
Max. Length: 800 mm (31.5")

[Material gusset]
Max. Width: 800 mm (31.5")
Width: 400 mm ( 15.7")
Maximum Length: 200 mm (7.78")


* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
