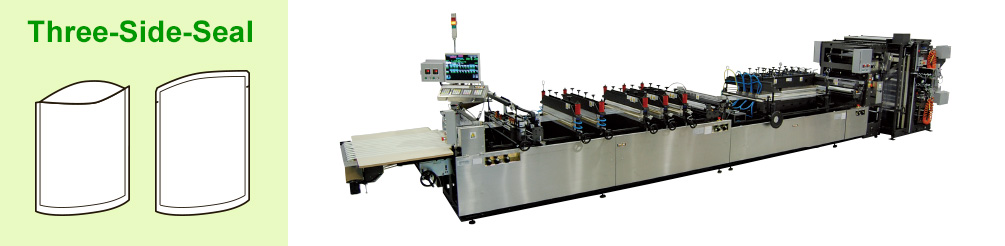

BH-80DHigh-speed, three-side-seal, automatic pouch making machine


Sample Products


Large-sized pouches for retort food, etc.


  • Inverter Controlled Edge Trim Winder
  • Cutter Control System
  • Rice bag-on-roll rewinder
  • Thompson die-cut unit for top shape
  • Thompson die-cut unit for full shape

Product Features

This model can make three-side-seal pouches larger than the BH-60D series model. Additional options, including standing pouch unit, zipper seal unit or in-line Thompson die-cut unit, make this model very versatile to meet the needs of pouch making.

Totani's original servo motor control system realizes both high speeds, up to 240 CPM and high quality (beautiful and high-strength sealing). And, film feed roller unit that operates with servo drive system can be added. This model supports both half fold system and joining film system. The Half fold system uses one roll film while the Joining film system uses two roll films to make large-sized pouches at high speed.

Most laminated films used in pouches for food, commodities, and infusion bags for medicines are supported.

* Pouch making capacity varies depending on film material and thickness.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others. Please consult with sales dept. for further information.

Standard Specifications

Bag Making Sizes & Shapes

[ Joining System ]

Bottom Seal


  • L1·W2:Up to 800 mm
  • W1·L2:Up to 500 mm

Side Seal


[ Half Hold ]

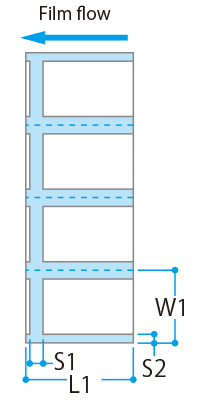

Bottom Seal (4-line bottom seal case illustrated)

  • L1 (Pouch length): Up to 2-strike 300 mm / Up to 1-strike 500 mm
  • W1 (Pouch width): 75 to 800 mm
  • S1 (Seal width): Up to 80mm
  • S2 (Seal width): Up to 25 mm

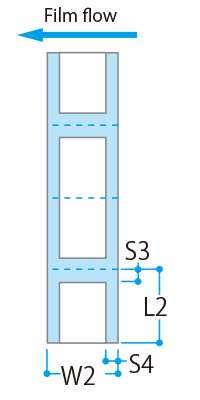

Side Seal (4-line side seal case illustrated)

  • L2 (Pouch length):50 to 800 mm
  • W2 (Pouch length): Up to 2-strike 300 mm / Up to 1-strike 500 mm
  • S3 (Seal width): Up to 25 mm
  • S4 (Seal width): Up to 40 mm

Standard Specifications

Film Laminated film of all kinds
Roll size Maximum width: 1200 mm, Maximum diameter: 600 mm
Roll film unwinding unit Horizontal dual shafts & dual roll system
Half holding and joining film system (option)
Definitive tension control system with powder brake equipment
Control system Numerical control system
Film feed mechanism Dual AC servo motor drive system
Heat sealer vertical movement mechanism Single AC servo motor drive system (with functions for setting sealing time)
Pouch making data storage function - Sealing temperature
- Pouch making speed
- Sealing time
- Sealing ratio
Pouch manufacturing ability Maximum cycle: 240 CPM
Maximum film speed: 45 m /min
Area for installation/Weight About 2.16 x 7.91 m/About 5,300 kg
Optional equipment
  • Inverter Controlled Edge Trim Winder
  • Indexing conveyor
  • Powder Shaker
  • Punch Equipment (various)
  • Alarm Equipment (various)
  • Sealing position detection/cutting position control unit
* Slow start mechanism is to adjust to the set operation speed from the machine start gradually in a few seconds.
*1 Equipment settings by display and simple keyboard entry. Printing mark detection by mark sensor.
*2 Bag making capacity depends on film material and thickness. Number of shots and film speed are calculated separately and are not related.
*3 Allow extra space for maintenance and operating.
** The options mentioned above are sold separately and not included as standard equipment.
** Options in addition to those mentioned above can be designed and manufactured to suit customer needs. Please consult us without obligation.

* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
