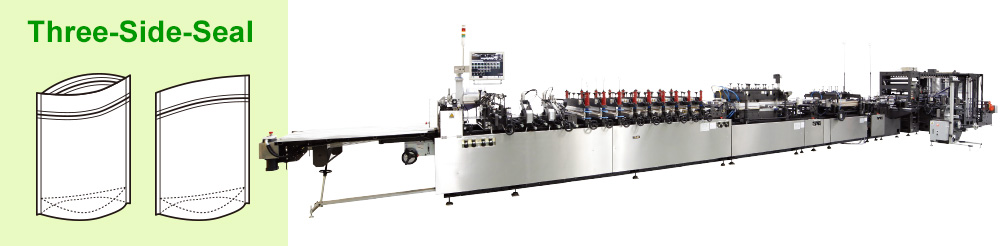

BH-60DLLSC+CTHigh-speed, automatic pouch making machine [half fold fusion, standing pouch and zipper seal units]

BH-60DLLSC+CT

BH60DLLSC+CT can making Half fold fusion pouch
and Bottom Web standing pouch.

5servo system

Maximum pouch making shot

  • 240 CPM*
  • 200 CPM (zipper seal bag making)
  • *Pouch making capacity depends on film material and thickness.

Versatility and High Productivity come true now!!

  • Three main frame lengths are available to accommodate your specific use and available spaces.
  • Capable of having print on the bottom gusset in alignment with the front and back print.
  • Available with future options such as the real time single and double cutter control system.

Product Features

his five-servo machine is fitted with a Half fold fusion pouch and Bottom Web standing pouch as well as an extra feed drive servo.
Standing pouches with zipper can be made at 240 CPM.
BH60DLLSC+CT Capable of having print on the bottom gusset in alignment with the front and back print.
Totani provides three main frame length to cope with your specific use and available space.

* Pouch making capacity varies depending on film material and thickness.

The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others. Please consult with sales dept. for further information.

Pouch Making Sizes and Shapes

  • BH-60DLLSC+CT

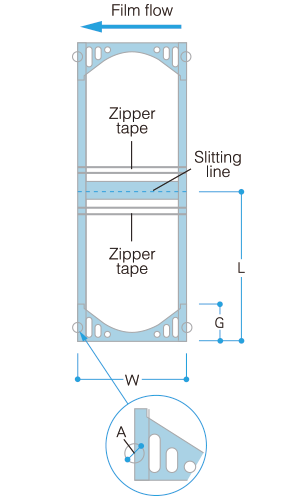

    Standing Pouch with Zipper 2-line bag making
    (1-line bag making is also possible)

    W (Bag width) :60 mm to 250 mm*
    L (Bag length) :120 mm to 270 mm (2-line bag making)
     240 mm to 540 mm (1-line bag making)
    G (Bottom gusset depth) :20 mm to 45 mm (70 mm)
    A (Bottom punch diameter [Standard]) :15 mm*
  • BH-60DLLSC+CT

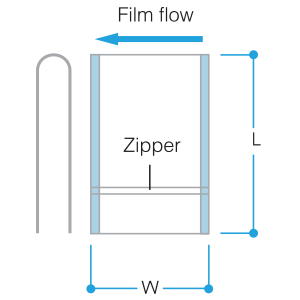

    Zipper bags 1-line (without gusset)

    W (Bag width) :60mm to 300mm
    L (Bag length) :200mm to 600mm
  • BH-60DLLSC+CT

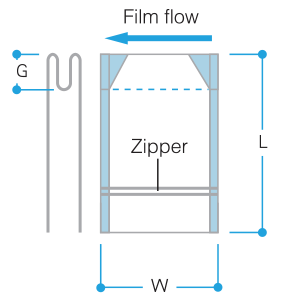

    Standing pouch with zipper 1-line gusset bag making

    W (Bag width) :60 mm to 300 mm*
    L (Bag length) :200 mm to 600 mm-G
    G (Bottom gusset
    depth-gusset fold width)
    :25 mm to 100 mm

*Bag sizes referenced above utilize optional devices.
