Box Pouches can used in a wide range of fields, such as packing of commodities and food such as candy, cereal box and infusion bags of drug medicine.

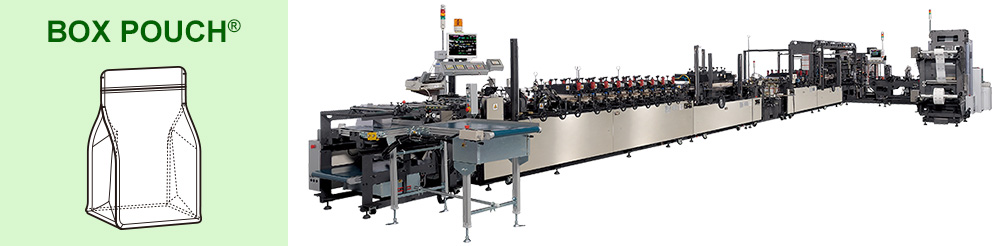

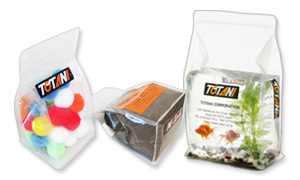

This model machine can make BOX POUCH®, which when filled, displays like a box to make it a more appealing package.
Totani's original technology realizes both high-speed (up to 120 CPM) Pouch making and high-quality/high-strength sealing, makes it suitable for storage and transportation of not only solid but also liquid because of its high hermiticity.
Five-face printing is supported only in BOX POUCH®. And, most laminated films used in pouches for food and commodities are supported. This resource saving machine can save 12% film in comparison with conventional standing pouch with the same capacity.
The maximum cycle per minute described is verified under the certain conditions.
Actual production speed may vary depending upon materials and others.
Please consult with sales dept. for further information.
|1: Speed||Maximum Speed: 120 CPM||
|2: Bag size||Width: 90~194 mm (3.54in - 7.64in)||Twice Cut Function enabled.
Double Cut partial material is 6 mm (0.236").
Required L = 96mm - 200 mm (3.78in - 7.87in).
|Depth, Side Gusset: 37mm - 57 mm( 1.46in - 2.24in)|
|Min. distance between gusset: 2mm (0.0787in)|
|Zipper Position||> 8 mm (0.315") distance between zipper and the top of the side gusset.|
|Side Gusset Position||> 100 mm (3.94") distance between top edge of bag and the top terminated side gusset.|
|Punch hole at the bottom (only Pinch Bottom Bag): Diameter 6mm - 19mm (0.236in - 0.748in)|
|3: 45-Degree Angle Folded Gusset (Patent)||Fold top edge of the gusset to 45-degree angle.||> 8 mm (0.315") distance between under zipper and top of side gusset.|
|4: Side Seal||The standard width of the side seal is 8 mm (0.315").||The gusset folded to 45-degree angle must be heated bond on side seal. Therefore, if width ofside seal is narrow, it is possible that top of the gusset is not closed.|
|5: Double Cut Material||Standard width: 6 mm (0.236").||Double cut chip is too narrow, top of gusset may not be sealed properly.|
|6: Pinch Seal||The pinch seal means a round seal as part of side seal.
The pinch seal prevents the side gusset from popping out of the bag.
|Operation without pinch seal can work, but the pinch seal is required if the width of the side seal is 5 mm (0.197").|
|7: Bottom punch||The Gusset Bag without square bottom requires bottom holes.||Bottom Punch Hole Diam:
9mm - 19 mm (0.354in - 0.748in)
Distance beween holes: 30 mm(1.18")
|Two punch equipments is necessary to reduce the distance between two holes.|
(Ship bottom seal)
|Side Gusset Bag -K-seal located at bottom head of gusset.||The width of the seal bar is 130 mm (5.12") in the direction of film flowing.||Seal bar is outfitted with the heater of the horizontal seal which is a part of the rocket seal.
Therefore, the heater block of 130 mm width is necessary to accept the seal bar.
|9: Roll Size||
[Example of Specifications for 100 bpm pouch making]
* Due to equipment improvement, the above-mentioned figures and appearance may be changed without notice.
